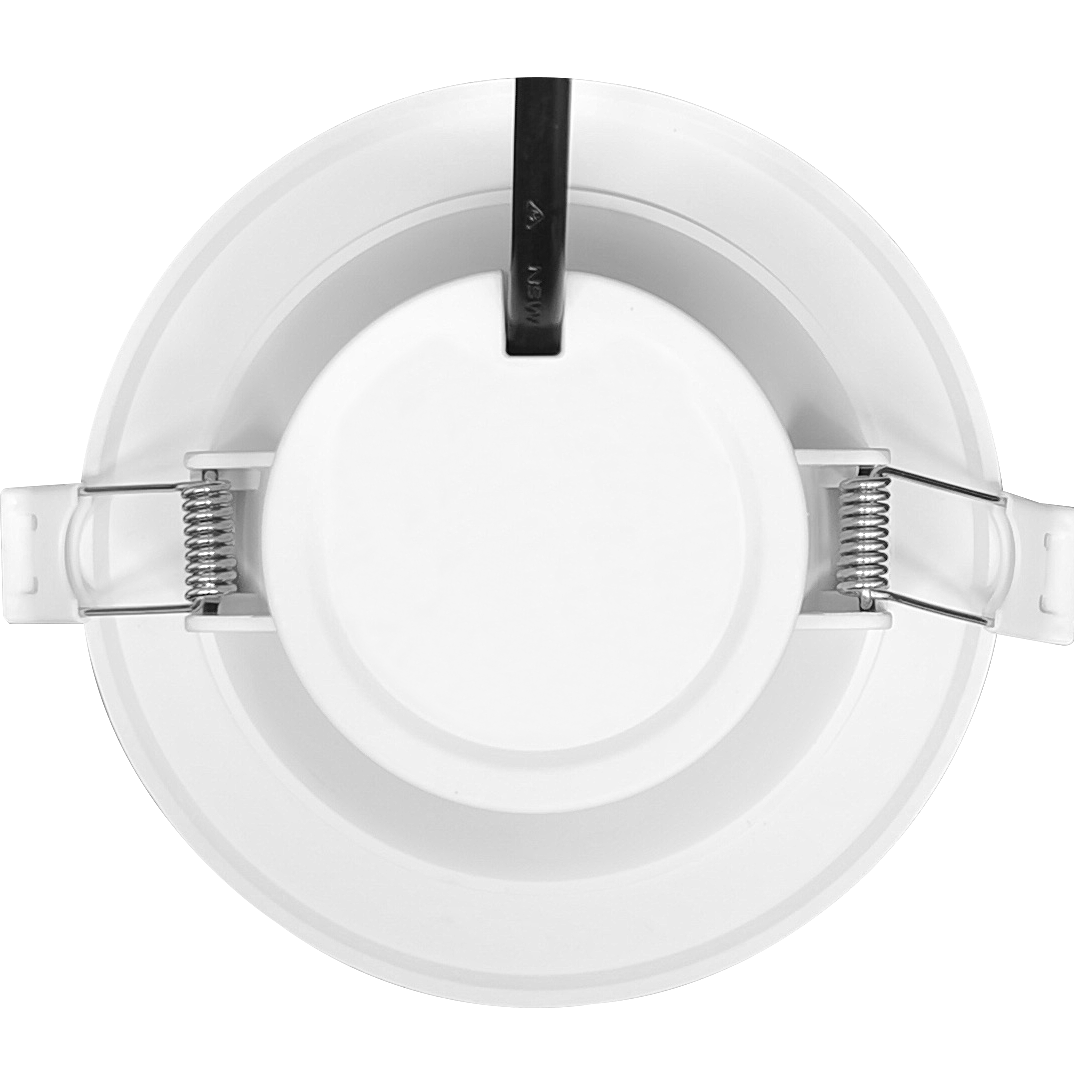

ClassiIntelli Smart LED downlight RGBCW D1090-WH-SMT
classic compact design with built-in Intelligent LED driver.
IP54 rating front cover design, suitable for damp environment.
No yellowing frosted PC diffuser ensures the high light transmittance and uniform lighting output.
Features
High Luminous Efficacy: 100-110lm/W
3000K-6500K plus RGB
High Color Rendering Index: 90Ra for 3000K-6500K
Easy to install with flex and plug
High Voltage Surge Protection
Flicker Free
3 Years Warranty
Support App and Voice Control
Sustainable and ECO-friendly packaging
IC-4 testing at Ta 40°C
PRODUCT TYPE: Smart LED Downlight
PRODUCT CODE: D1090-WH-SMT
BODY COLOUR: White
BODY MATERIAL: Aluminium built-in Polyamide PA-6
LENS: Yes. Flush
DIFFUSER MATERIAL: Polycarbonate
DIFFUSER COLOUR: Opal | Operation
INPUT VOLTAGE: 220 ~ 240Vac
INPUT FREQUENCY: 50 ~ 60Hz
ELECTRICAL RATING: Class II
CCT: 3000K-6500K+RGB
WATTAGE: 8W
IP RATING: IP54 for the front face
TEMP RANGE: -20° ~ +40°C
Lumens: 800 ~ 900 (3000K-6500K)
CRI: 90Ra (3000K-6500K)
POWER FACTOR: >0.5
SDCM: <6
Beam Angle: 100°
IC rating: IC-4 / IC-F
Warranty: 3 Years
STANDARDS: AS/NZS 60598.1, AS/NZS 60598.2.2, AS/NZS 61347.1, AS/NZS 61347.2.13 AS CISPR 15 | Driver
DRIVER POSITION: Built-in
FLICKER: Flicker free
CONNECTION TYPE: Flex & Plug
INPUT CURRENT: 0.04A
OUPUT VOLTAGE: 265 ~ 275Vdc
OUTPUT CURRENT: 30Ma
PROTECTION: Short Circuit, Over Voltage, Over Current, Over Temperature, Surge Voltage Protection
| Dimension & Weight
DIAMETER (mm): 115
HEIGHT (mm): 60
CUTOUT DIAMETER (mm): 90-100 Function
|
