Product Information

PRODUCT TYPE:

Flush Face Sensor LED Downlight

PRODUCT CODE:

D1090S-WH-3CT

BODY COLOUR:

White

BODY MATERIAL:

Aluminium built-in Polyamide PA-6

DIFFUSED:

Yes. Flush

DIFFUSER MATERIAL:

Polycarbonate

DIFFUSER COLOUR:

Frosted

Operation

INPUT VOLTAGE:

220 ~ 240Vac

INPUT FREQUENCY:

50 ~ 60Hz

ELECTRICAL RATING:

Class II

CCT:

3-Colour

3000K,

4000K,

5000K

WATTAGE:

8W

IP RATING:

IP54 for the front face

TEMP RANGE:

-20° ~ +40°C

Lumens:

800 ~ 900

CRI:

90Ra

POWER FACTOR:

>0.9

SDCM:

<6

Beam Angle:

100°

IC rating:

IC-4 / IC-F

Warranty:

3 Years

STANDARDS:

AS/NZS 60598.1,

AS/NZS 60598.2.2,

AS/NZS 61347.1,

AS/NZS 61347.2.13

AS CISPR 15

Driver

DRIVER DIMMABLE:

NO

DRIVER POSITION:

Built-in

DIMMING TYPE:

Non-dimmable

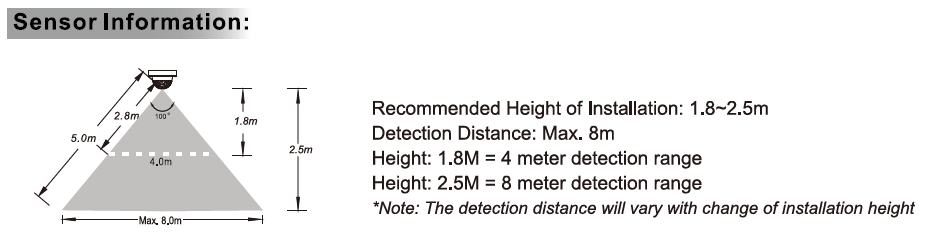

SENSOR TYPE:

PIR

FLICKER:

Flicker free

CONNECTION TYPE:

Flex & Plug

INPUT CURRENT:

0.05A

OUPUT VOLTAGE:

410 ~ 450Vdc

OUTPUT CURRENT:

18Ma

PROTECTION:

Short Circuit,

Over Voltage,

Over Current,

Over Temperature,

Surge Voltage Protection

Dimension & Weight

DIAMETER (mm):

115

HEIGHT (mm):

60

CUTOUT DIAMETER (mm):

90-100
