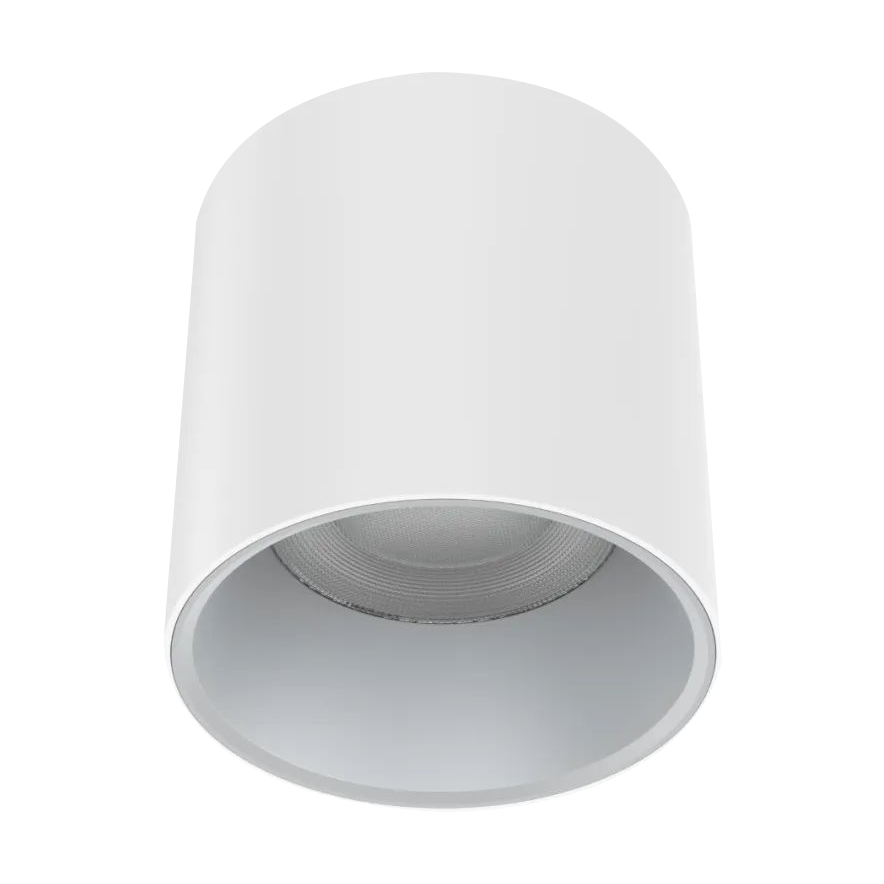

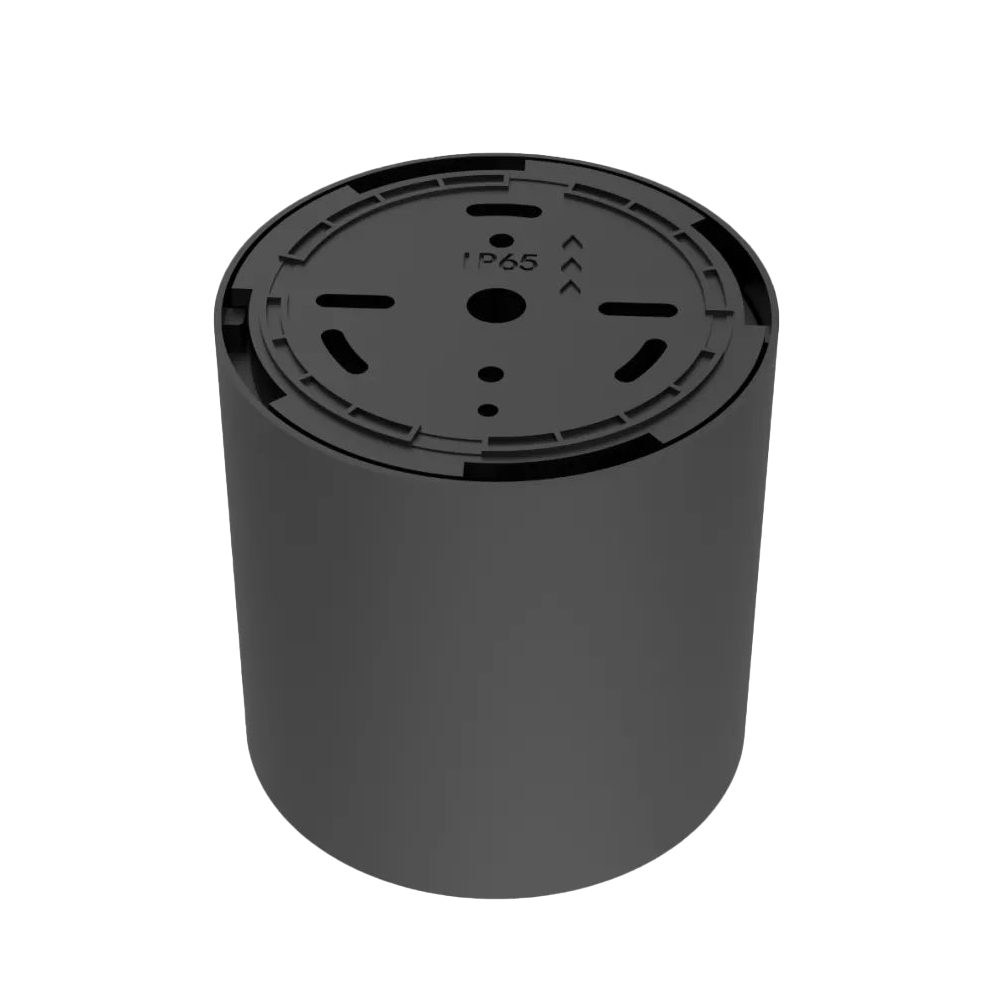

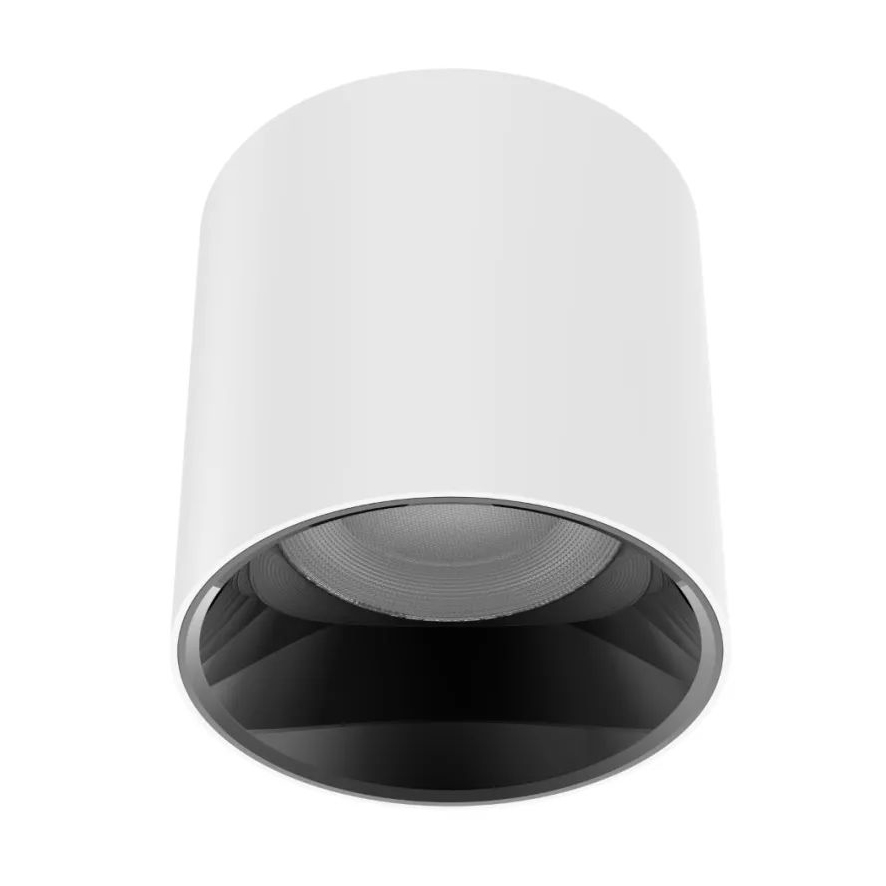

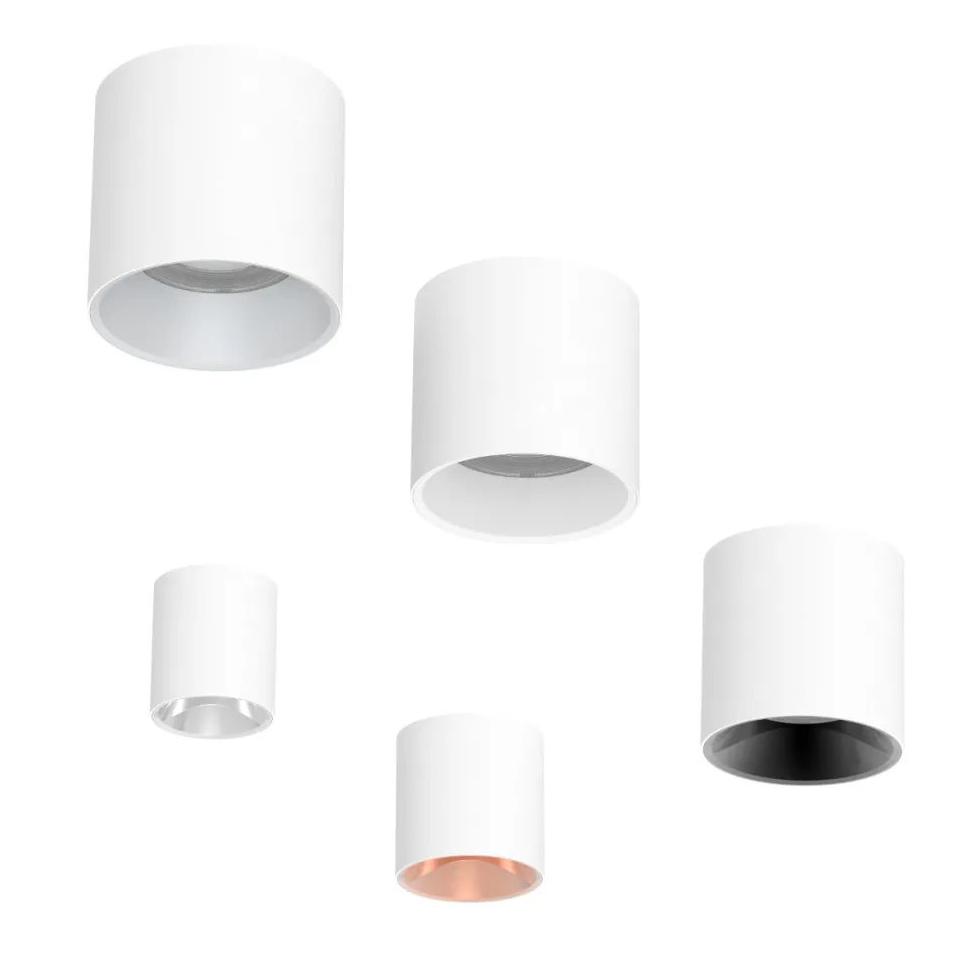

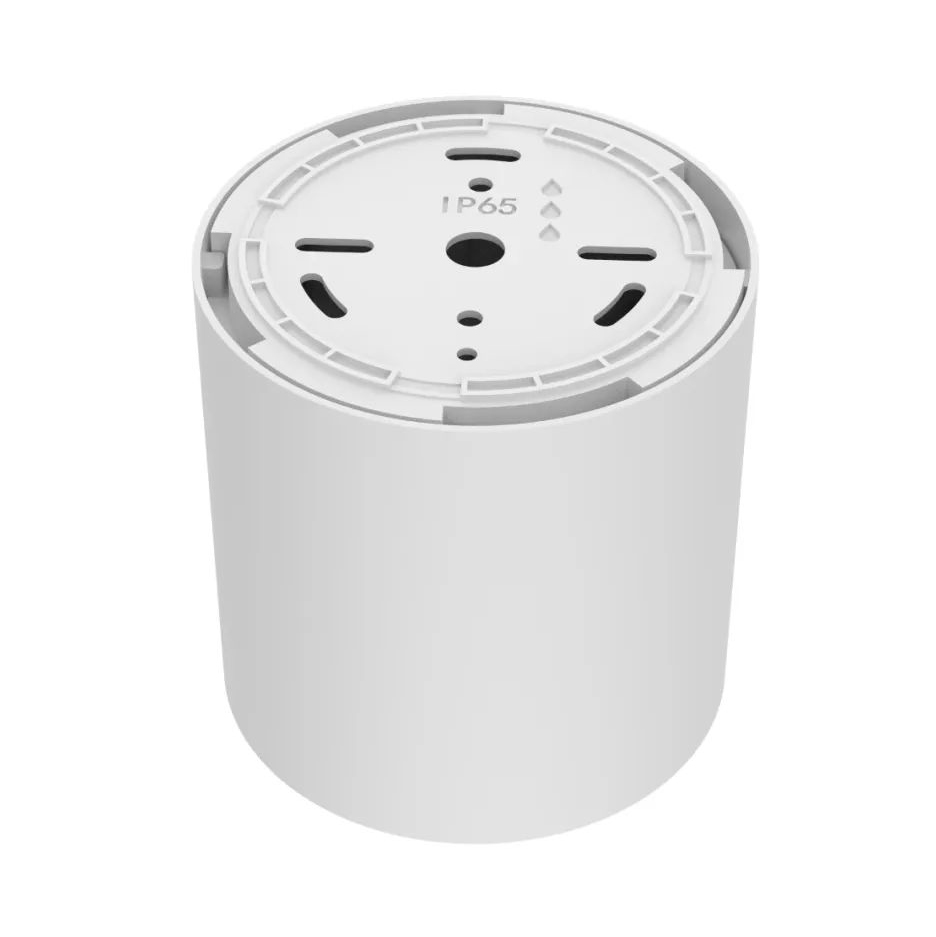

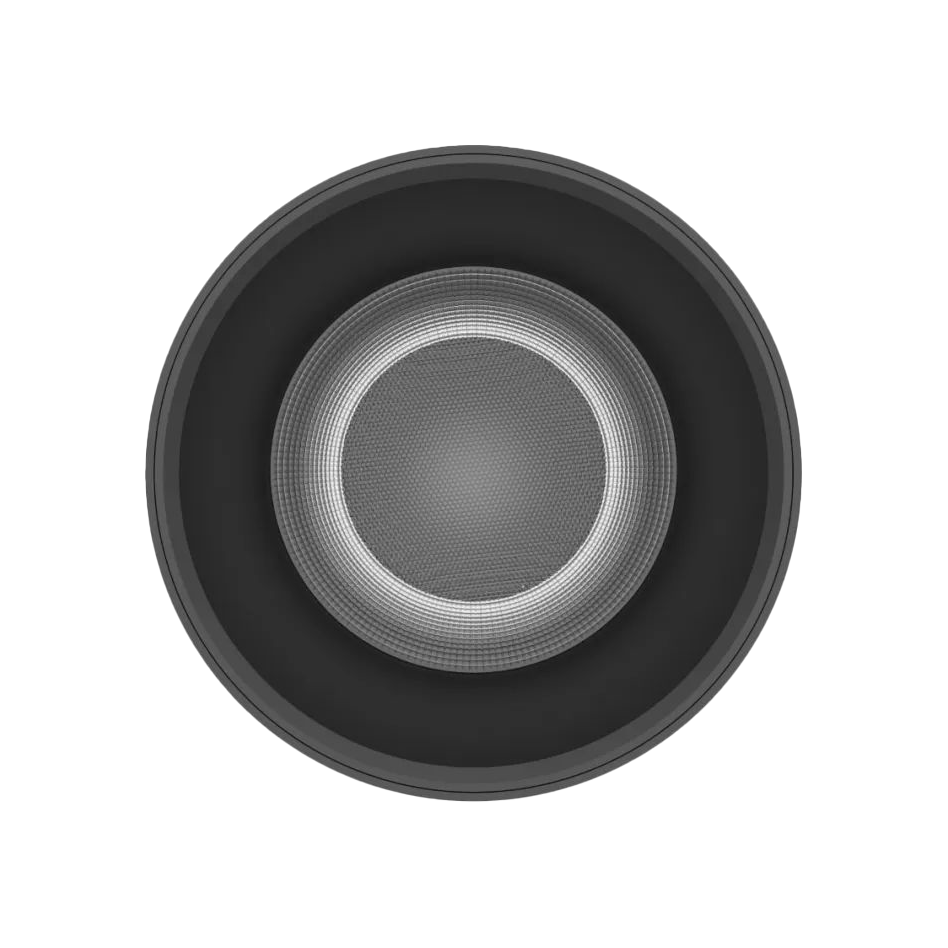

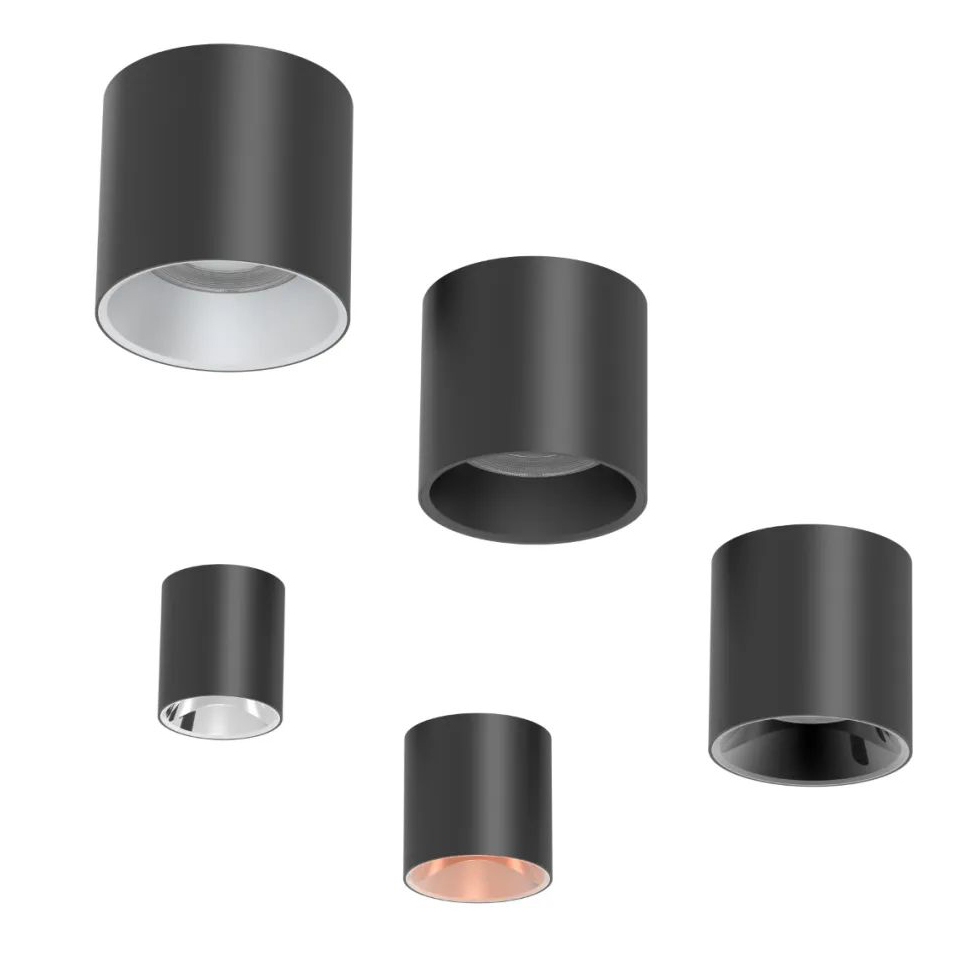

IP65 Surface Mounted LED Downlight
IP65 rating suitable for damp environment.
Lens design ensures the high light transmittance and uniform lighting output.
Aluminium heat sink greatly improves cooling efficiency.
Features
High Luminous Efficacy: 90-100lm/W
High Color Rendering Index: 90Ra
Lower Color Tolerance: SDCM≤3
Built-in High Efficacy IP65 LED driver
Easy to install
Flicker Free
5 Years Warranty
PRODUCT TYPE: Surface Mounted LED Downlight
PRODUCT CODE: SD80-WH 12W SD100-WH 16W SD130-WH 20W SD150-WH 24W SD170-WH 30W
BODY COLOUR: White or Black
BODY MATERIAL: Aluminium
LENS: Yes.
LENS MATERIAL: PMMA
LENS COLOUR: Clear | Operation
INPUT VOLTAGE: 220 ~ 240Vac
INPUT FREQUENCY: 50 ~ 60Hz
ELECTRICAL RATING: Class I for downlight Class II for LED driver
CCT: 1-Colour 2700K 3000K, 4000K, 5000K, 6000K
WATTAGE: 12W 16W 20W 24W 30W
IP RATING: IP65
TEMP RANGE: -20° ~ +40°C
Lumens: 12W: 1080 ~ 1200 16W: 1450 ~ 1600 20W: 1800 ~ 2000 24W: 2160 ~ 2400 30W: 2700 ~ 3000
CRI: 90Ra
POWER FACTOR: >0.9
SDCM: <3
Beam Angle: 60°
IC rating: N/A
Warranty: 5 Years
STANDARDS: AS/NZS 60598.1, AS/NZS 60598.2.2, AS/NZS 61347.1, AS/NZS 61347.2.13 AS CISPR 15 | Driver
DRIVER DIMMABLE: Yes
DRIVER POSITION: Built-in
DIMMING TYPE: Triac Dimming
FLICKER: Flicker free
CONNECTION TYPE: Flex & Terminal
INPUT CURRENT: <0.50A
OUPUT VOLTAGE: 30 ~ 42Vdc
OUTPUT CURRENT: 300Ma / 500mA / 650mA / 700mA / 1000Ma
PROTECTION: Short Circuit, Over Voltage, Over Current, Over Temperature, Surge Voltage Protection
| Dimension & Weight
DIAMETER (mm): 80 / 100 / 130 / 150 / 170
HEIGHT (mm): 90 / 100 / 130 / 140 / 160
CUTOUT DIAMETER (mm): N/A |
