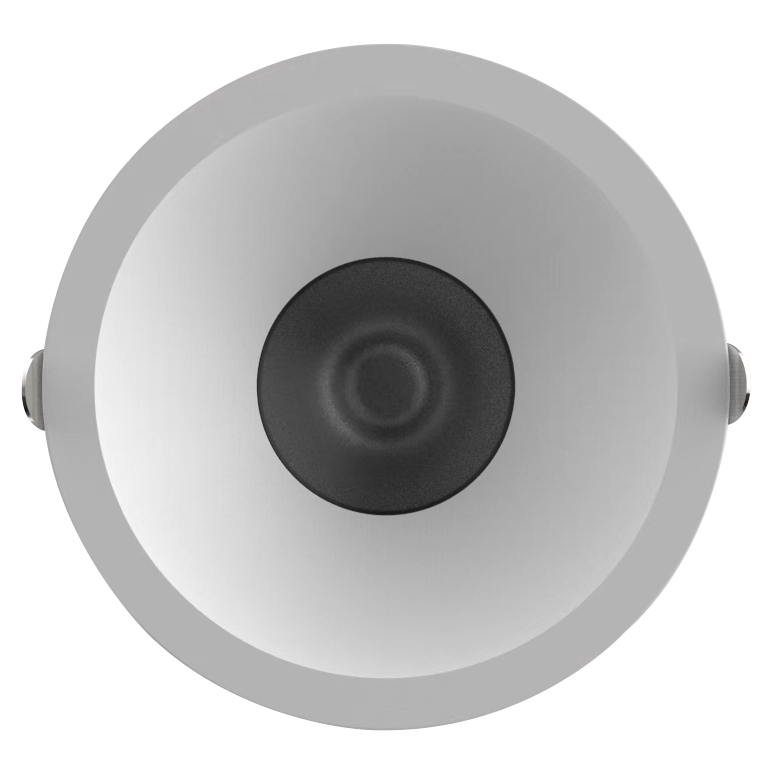

Green Star COB LED Downlight
IP44 rating front cover design, suitable for damp environment.
Lens design ensures the high light transmittance and uniform lighting output.

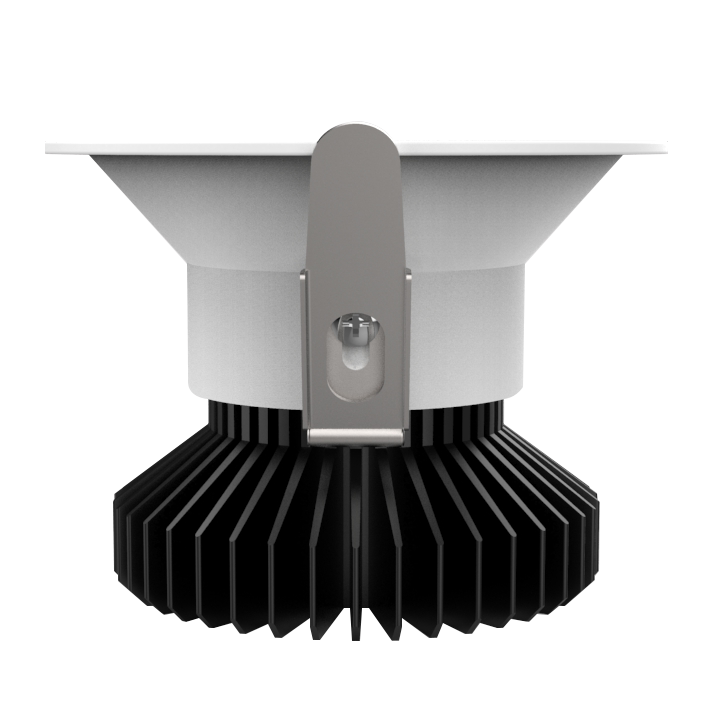

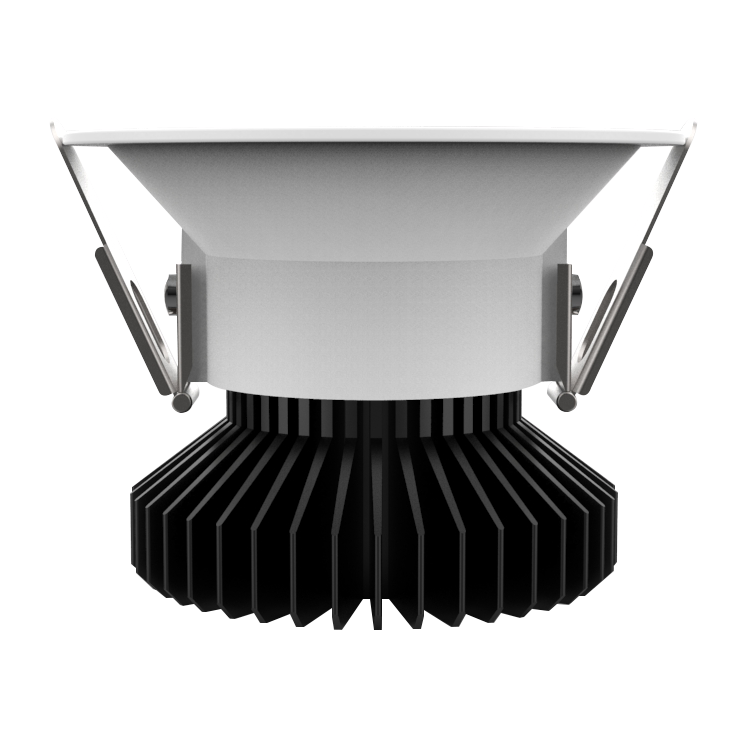

Aluminium heat sink greatly improves cooling efficiency.
Features
12W-10W-8W selectable
High Luminous Efficacy: 90-100lm/W
3000K/4000K/5000K switchable
High Color Rendering Index: 90Ra
Lower Color Tolerance: SDCM≤3 for all CCT
Low UGR<19
High Efficacy Remote Isolated LED driver
Easy to install with flex and plug
High Voltage Surge Protection
Flicker Free
5 Years Warranty
Triac Dimmable with DIGINET and major Australian dimmers
Sustainable and ECO-friendly packaging
PRODUCT TYPE: Antiglare COB LED Downlight
PRODUCT CODE: D8F90-AL-3CT
BODY COLOUR: Black Heatsink+White Fascia
BODY MATERIAL: Aluminium
LENS: Yes.
LENS MATERIAL: PMMA
LENS COLOUR: Clear | Operation
INPUT VOLTAGE: 220 ~ 240Vac
INPUT FREQUENCY: 50 ~ 60Hz
ELECTRICAL RATING: Class III for downlight Class II for LED driver
CCT: 3-Colour 3000K, 4000K, 5000K
3 WATTAGES: 12W-10W-8W
IP RATING: IP44 for the front face
TEMP RANGE: -20° ~ +40°C
Lumens: 1100lm
CRI: 90Ra
POWER FACTOR: >0.9
SDCM: <3
Beam Angle: 60°
IC rating: IC-4 / IC-F
Warranty: 5 Years
STANDARDS: AS/NZS 60598.1, AS/NZS 60598.2.1, AS/NZS 61347.1, AS/NZS 61347.2.13 AS CISPR 15 | Driver
DRIVER DIMMABLE: Yes
DRIVER POSITION: External / Remote
DIMMING TYPE: Triac Dimming
FLICKER: Flicker free
CONNECTION TYPE: Flex & Plug
INPUT CURRENT: 0.03A
OUPUT VOLTAGE: 30 ~ 42Vdc
OUTPUT CURRENT: 300mA
PROTECTION: Short Circuit, Over Voltage, Over Current, Over Temperature, Surge Voltage Protection
| Dimension & Weight
DIAMETER (mm): 100
HEIGHT (mm): 73
CUTOUT DIAMETER (mm): 90 |
