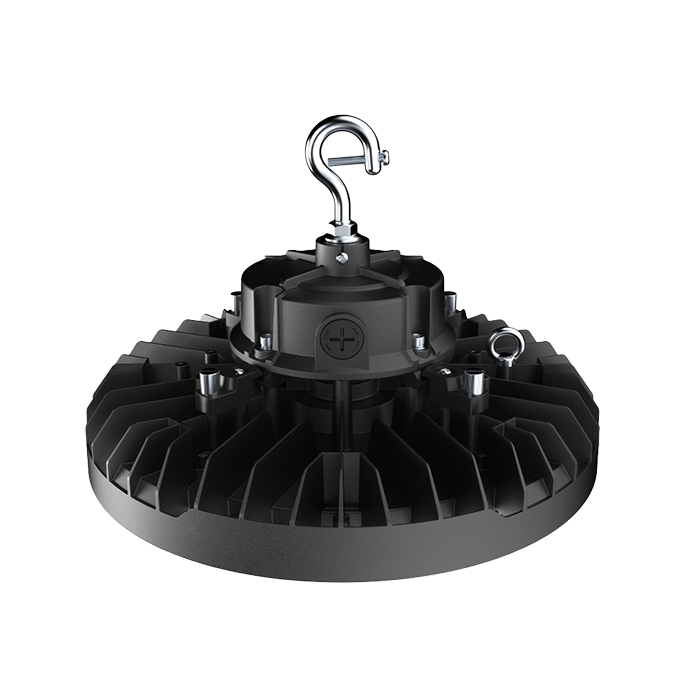

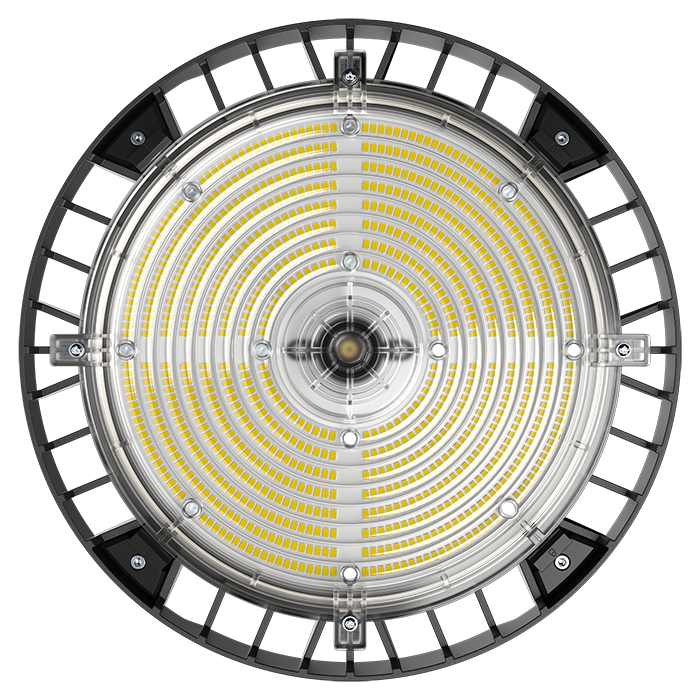

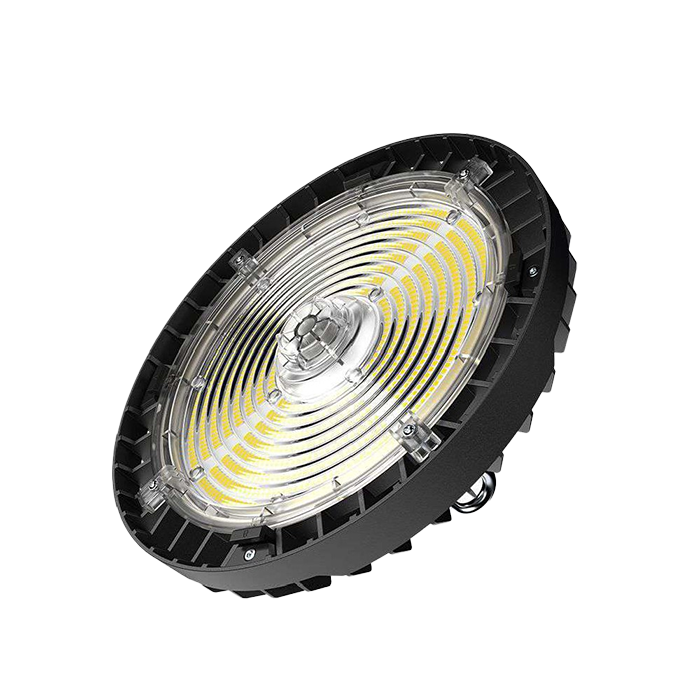

UFO LED Highbay Light
Built with a rugged die-cast aluminum housing and a high-impact polycarbonate lens, this fixture delivers exceptional durability and long-lasting performance. With adjustable wattage and color temperature options, the LED UFO High Bay provides the flexibility to meet various lighting requirements. Whether illuminating a warehouse, factory, or distribution center, this fixture offers bright, consistent light while reducing energy consumption, making it the perfect choice for high-ceiling spaces.
Features
• Tritone colour selectable
• Power switchable
• IP65 and IK08 rating
• 1-10V dimmable
• Flicker-free driver
• Diecast aluminium construction
• Various accessories available
PRODUCT TYPE: UFO LED Highbay Light
PRODUCT CODE: HIB01-150 HIB01-240
BODY COLOUR: Black
BODY MATERIAL: Aluminium
DIFFUSED: Yes.
DIFFUSER MATERIAL: PC
DIFFUSER COLOUR: Clear | Operation
INPUT VOLTAGE: 120 ~ 277Vac
INPUT FREQUENCY: 50 ~ 60Hz
ELECTRICAL RATING: Class I
CCT: 3-Colour 3000K, 4000K, 5000K,
3 WATTAGES: 100W/120W/150W 150W/200W/240W
IP RATING: IP65
TEMP RANGE: -20° ~ +50°C
Lumens: up to 150lm/W 22500lm (150W) 36000lm (240W)
CRI: 80Ra
POWER FACTOR: 0.95
SDCM: <6
Beam Angle: 60° , 90° or 120°
IC rating: N/A
Warranty: 5 Years
STANDARDS: SAA, C-TICK, CE, ERP ,RoHS | Driver
DRIVER DIMMABLE: Yes
DRIVER POSITION: Built-in
DIMMING TYPE: 1-10V Dimming
FLICKER: Flicker free
CONNECTION TYPE: Flex
INPUT CURRENT: <3A
OUPUT VOLTAGE: 180 ~ 260Vdc
OUTPUT CURRENT: Max 1.2A
PROTECTION: Short Circuit, Over Voltage, Over Current, Over Temperature, Surge Voltage Protection
| Dimension & Weight
DIAMETER (mm): 240 (150W) 300 (240W)
HEIGHT (mm): 129 |
