RapidLink Dimmable LED Downlight
IP54 rating front cover design, suitable for damp environment.
No yellowing frosted PC diffuser ensures the high light transmittance and uniform lighting output.
Features
High Luminous Efficacy: 90-100lm/W
3000K/4000K/5000K switchable
High Color Rendering Index: 90Ra
Lower Color Tolerance: SDCM≤3 for all CCT
High Efficacy Built-in Non-Isolated LED driver
Easy to install with flex and plug for AU market
High Voltage Surge Protection
Flicker Free
3 Years Warranty
Triac Dimmable with DIGINET and major Australian dimmers
Sustainable and ECO-friendly packaging
Product Information
PRODUCT TYPE: Flush Face LED Downlight
PRODUCT CODE: D2090F-WH-3CT
BODY COLOUR: White
BODY MATERIAL: Aluminium built-in Polyamide
DIFFUSER: Yes. Flush
DIFFUSER MATERIAL: Polycarbonate
DIFFUSER COLOUR: Opal | Operation
INPUT VOLTAGE: 220 ~ 240Vac
INPUT FREQUENCY: 50 ~ 60Hz
ELECTRICAL RATING: Class II
CCT: 3-Colour 3000K, 4000K, 5000K
WATTAGE: 8W
IP RATING: IP54 for the front face
TEMP RANGE: -20° ~ +40°C
Lumens: 800 ~ 900
CRI: 90Ra
POWER FACTOR: >0.9
SDCM: <3
Beam Angle: 60°
IC rating: IC-4 / IC-F
Warranty: 3 Years
STANDARDS: AS/NZS 60598.1, AS/NZS 60598.2.2, AS/NZS 61347.1, AS/NZS 61347.2.13 AS CISPR 15 | Driver
DRIVER DIMMABLE: Yes
DRIVER POSITION: Built-in
DIMMING TYPE: Triac Dimming
FLICKER: Flicker free

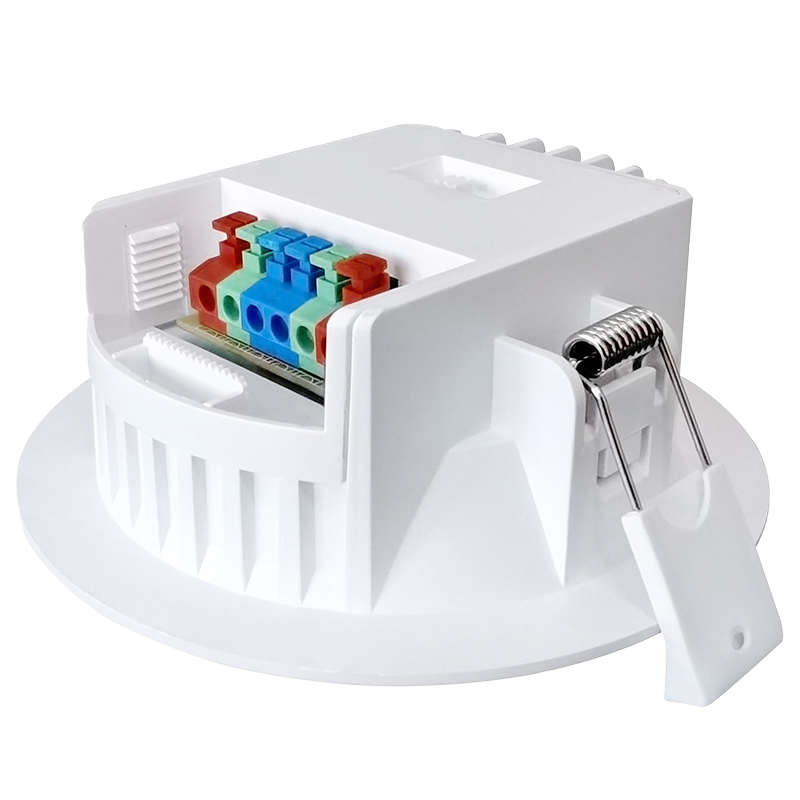

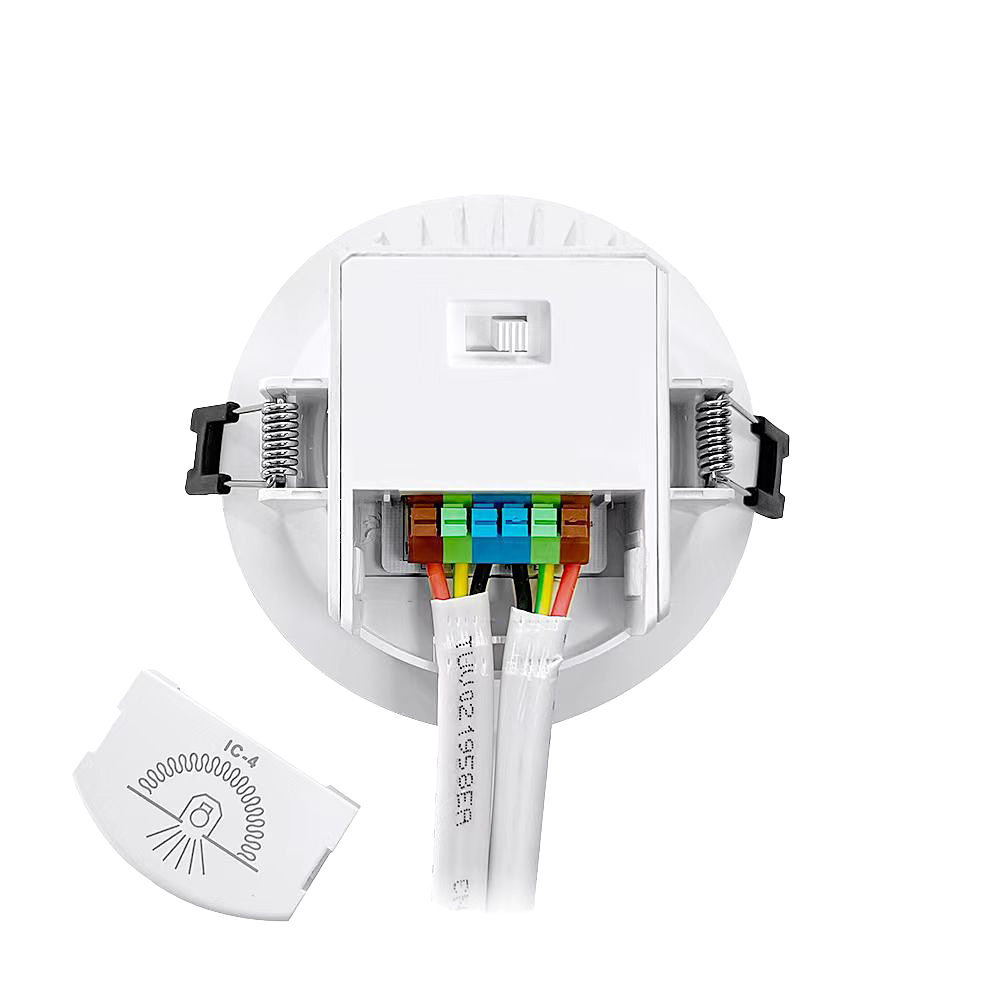

CONNECTION TYPE: Flex & Plug
INPUT CURRENT: 0.05A
OUPUT VOLTAGE: 420 ~ 450Vdc
OUTPUT CURRENT: 22Ma
PROTECTION: Short Circuit, Over Voltage, Over Current, Over Temperature, Surge Voltage Protection
| Dimension & Weight
DIAMETER (mm): 108
HEIGHT (mm): 40
CUTOUT DIAMETER (mm): 90 |
