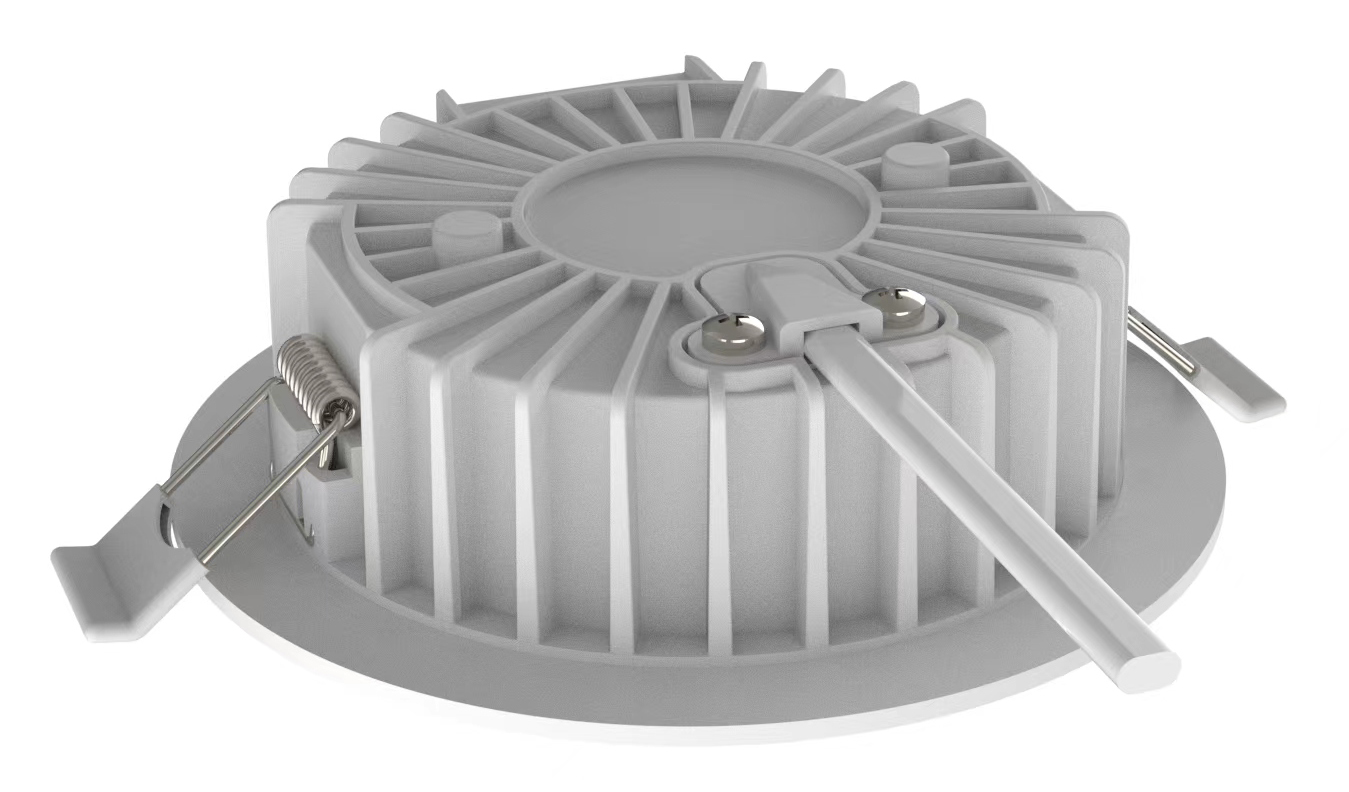

Opal Slim LED downlight
Low profile for installation into ceilings with low clearances
IP54 rating front cover design, suitable for damp environment.
Lens design ensures the high light transmittance and uniform lighting output.
Aluminium built-in PBT heat sink with no yellow PC trim.
Features
High Luminous Efficacy: 90-100lm/W
3000K/4000K/5000K switchable
High Color Rendering Index: 90Ra
Lower Color Tolerance: SDCM≤3 for all CCT
High Efficacy Integral Non-Isolated LED driver
Easy to install with flex and plug
High Voltage Surge Protection
Flicker Free
5 Years Warranty
Triac Dimmable with DIGINET and major Australian dimmers
Sustainable and ECO-friendly packaging
PRODUCT TYPE: Flush Face LED Downlight
PRODUCT CODE: D3090-WHS-3CT
BODY COLOUR: White
BODY MATERIAL: Aluminium built-in PBT
LENS: Yes. Flush
LENS MATERIAL: Polycarbonate
LENS COLOUR: Clear | Operation
INPUT VOLTAGE: 220 ~ 240Vac
INPUT FREQUENCY: 50 ~ 60Hz
ELECTRICAL RATING: Class II
CCT: 3-Colour 3000K 4000K 5000K
WATTAGE: 8W
IP RATING: IP54 for the front face
TEMP RANGE: -20° ~ +40°C
Lumens: 800 ~ 900
CRI: 90Ra
POWER FACTOR: >0.9
SDCM: <3
Beam Angle: 60°
IC rating: IC-4 / IC-F
Warranty: 5 Years
STANDARDS: AS/NZS 60598.1, AS/NZS 60598.2.2, AS/NZS 61347.1, AS/NZS 61347.2.13 AS CISPR 15 | Driver
DRIVER DIMMABLE: Yes
DRIVER POSITION: Built-in
DIMMING TYPE: Triac Dimming
FLICKER: Flicker free
CONNECTION TYPE: Flex & Plug
INPUT CURRENT: 0.04A
OUPUT VOLTAGE: 60 ~ 80Vdc
OUTPUT CURRENT: 100Ma
PROTECTION: Short Circuit, Over Voltage, Over Current, Over Temperature, Surge Voltage Protection
| Dimension & Weight
DIAMETER (mm): 106
HEIGHT (mm): 37
CUTOUT DIAMETER (mm): 90 |
