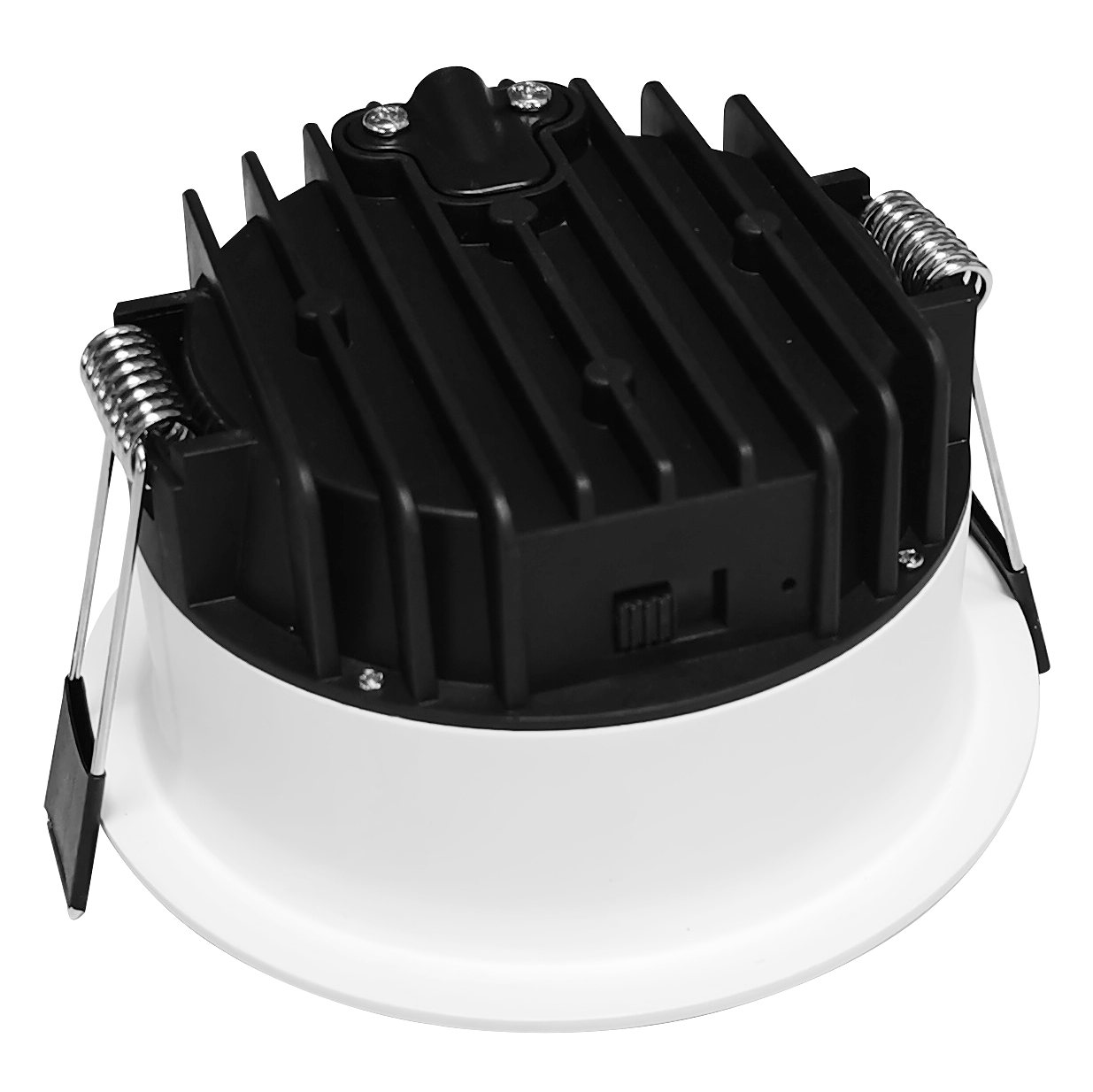

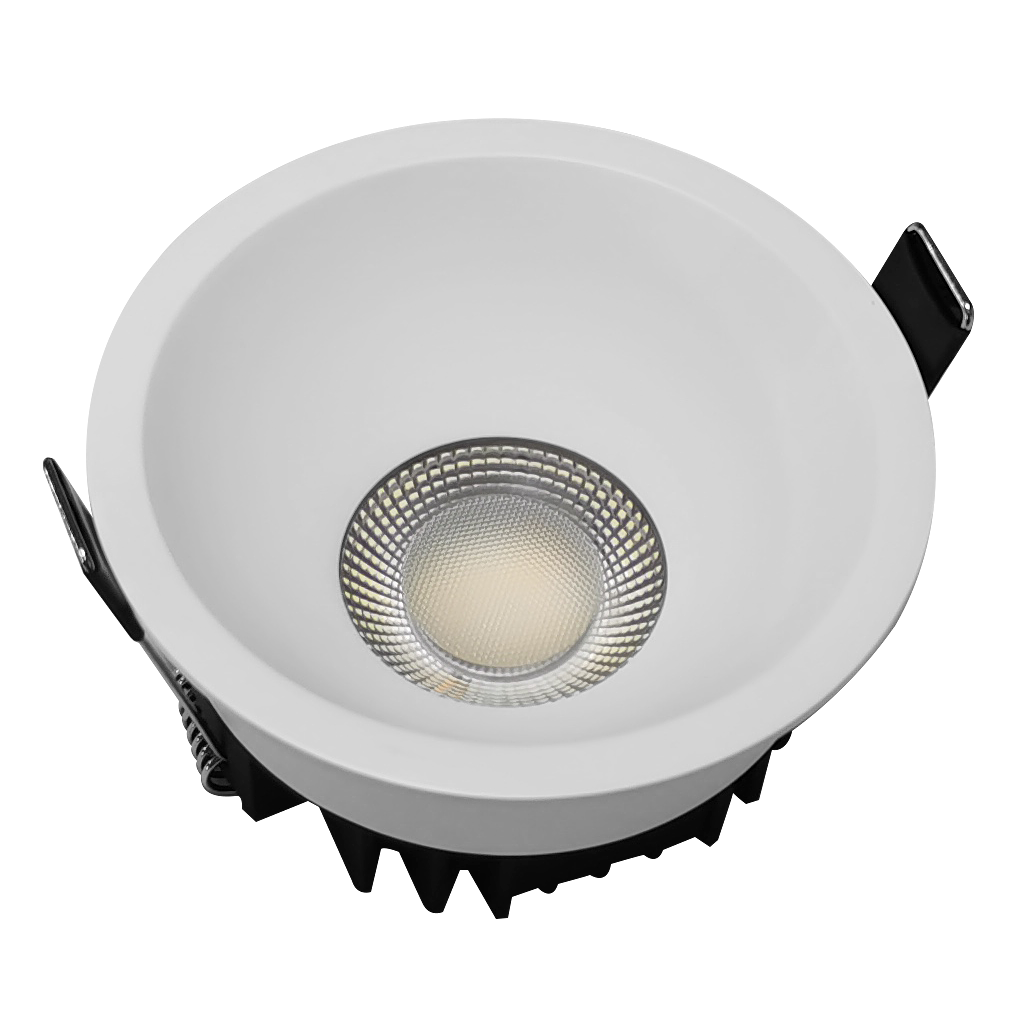

EyeLux Dimmable LED Downlight D6090-WH-CCT
IP54 rating front cover design, suitable for damp environment.
PMMA ensures the high light transmittance and uniform lighting output.
Features
High Luminous Efficacy: 100-110lm/W
3000K/4000K/5000K switchable
High Color Rendering Index: 90Ra
Lower Color Tolerance: SDCM≤3 for all CCT
High Efficacy Integral Non-Isolated LED driver
Easy to install with flex and plug
High Voltage Surge Protection
Flicker Free
5 Years Warranty
Triac Dimmable with DIGINET and major Australian dimmers
Sustainable and ECO-friendly packaging
PRODUCT TYPE: Antiglare LED Downlight
PRODUCT CODE: D6090-WH-CCT
BODY COLOUR: Black heatsink+White fascia
BODY MATERIAL: Aluminium built-in PBT
LENS: Yes
LENS MATERIAL: PMMA
LENS COLOUR: Clear | Operation
INPUT VOLTAGE: 220 ~ 240Vac
INPUT FREQUENCY: 50 ~ 60Hz
ELECTRICAL RATING: Class II
CCT: 3-Colour 3000K, 4000K, 5000K
WATTAGES: 8W
IP RATING: IP54 for the front face
TEMP RANGE: -20° ~ +40°C
Lumens: 800 ~ 900
CRI: 90Ra
POWER FACTOR: >0.9
SDCM: <3
Beam Angle: 60°
IC rating: IC-4 / IC-F
Warranty: 5 Years
STANDARDS: AS/NZS 60598.1, AS/NZS 60598.2.2, AS/NZS 61347.1, AS/NZS 61347.2.13 AS CISPR 15 | Driver
DRIVER DIMMABLE: Yes
DRIVER POSITION: Built-Out
DIMMING TYPE: Triac Dimming
FLICKER: Flicker free
CONNECTION TYPE: Flex & Plug
INPUT CURRENT: 0.05A
OUPUT VOLTAGE: 60 ~ 80Vdc
OUTPUT CURRENT: 100Ma
PROTECTION: Short Circuit, Over Voltage, Over Current, Over Temperature, Surge Voltage Protection
| Dimension & Weight
DIAMETER (mm): 100
HEIGHT (mm): 55
CUTOUT DIAMETER (mm): 90 |
